Step 3 Start the Discharge Operation

• Press the Start button on the bottom of the screen to run the Discharge operation. The arrow icon indicates the start action. Use the Start All button to start test operations on multiple channels.

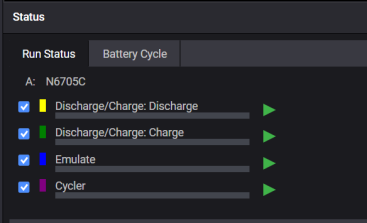

• Click on the Run Status area on the bottom of the screen for a quick view of the running progress of tests that are running on multiple channels. It also provides a quick start/stop control for each channel.

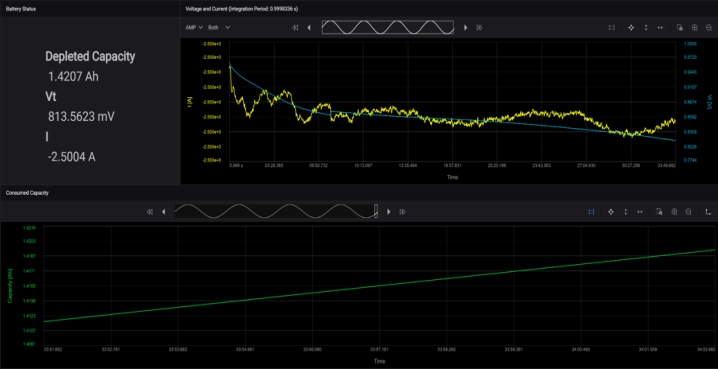

• The instrument will discharge the battery according to the specified parameters. When complete, the display will show the resultant discharge profile of the battery.


The Stop button stops the operation. Use the Stop All button to stop operations on multiple channels.

Go to Step 4
