Pulse Width

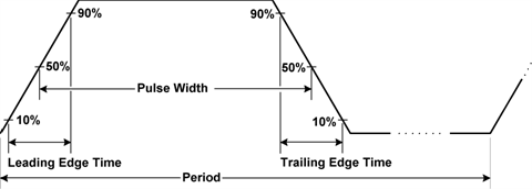

Applies to pulse waveforms only. The pulse width represents the time from the 50% threshold of the rising edge of the pulse to the 50% threshold of the next falling edge.

• The specified pulse width must be less than the difference between the Period and the minimum Pulse Width.
• The instrument will adjust the pulse width to accommodate the specified period.
