Sub-Harmonic Spurious

Sub-harmonics are signal impurities that occur at non-integer multiples of a generated signal’s fundamental frequency (such as 0.5, 1.5). This test utilizes a spectrum analyzer for measuring the power of the sub-harmonic component relative to the power at the fundamental frequency.

The spectrum analyzer and the signal generator are both tuned to the harmonic frequency and a reference amplitude measurement is made. Then, the signal generator is tuned to the fundamental frequency with the power level unchanged. The spectrum analyzer measures the resulting harmonic response relative to the reference amplitude.

Required Test Equipment

Test Equipment

Recommended Models

Alternative Models

Spectrum Analyzer

N9030B Opt 5xx1

N9030A Opt 5xx1

E444xA2

  1. Select any option of PXA spectrum analyzer (503, 508, 513, 526, 543, 544, 550) that has a maximum frequency greater than or equal to the maximum frequency of the unit under test. An N9030A/B Option 550 is required for units with Option 567. The N9030A/B Option 550 frequency range is adequate for all PSG-D frequency configurations.
  2. Select any model of PSA spectrum analyzer (E4440A, E4443A,E4445A, E4446A, E4447A, E4448A) that has a maximum frequency greater than or equal to the maximum frequency of the unit under test. An E4448A is required for units with Option 567. The E4448A frequency range is adequate for all PSG-D frequency configurations.

Connections and Setup Procedures

  • All test equipment requires a 30 minute warmup period to ensure accurate performance.

  • In the following test setup, cables are designated as solid lines and direct connections are designated as dashed lines.

  • This performance test has a smart connection feature.

  1. Connect all test equipment as shown.

  2. Connect GPIB cables to all GPIB-controlled test equipment.

  3. While performing this performance test, follow all instructions on the controller display.

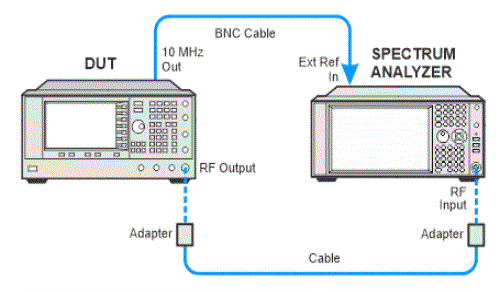

Setup for Sub-Harmonic Spurious



In Case of Difficulty

If this performance test fails, perform the following steps in order:

  1. Check the equipment setup (see above). If the setup is incorrect, make the necessary corrections and rerun the Performance Test.

  2. If this test fails with the equipment set up properly, refer to the troubleshooting section of the signal generator's service guide. If you do not have a printed copy of the service guide (Option OBW), one is available either on the CD-ROM that came with your signal generator shipment or on the Keysight Website.

  3. If you cannot correct the problem using the troubleshooting procedures in the Service Guide, obtain service from Keysight Technologies. Refer to Contacting Keysight Technologies.
