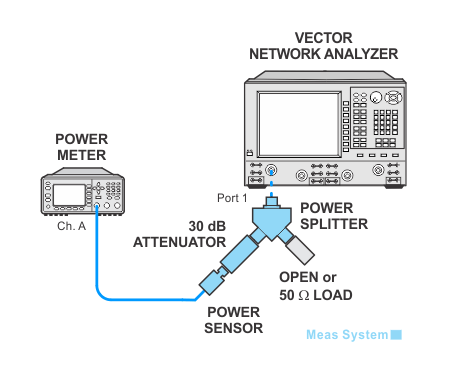

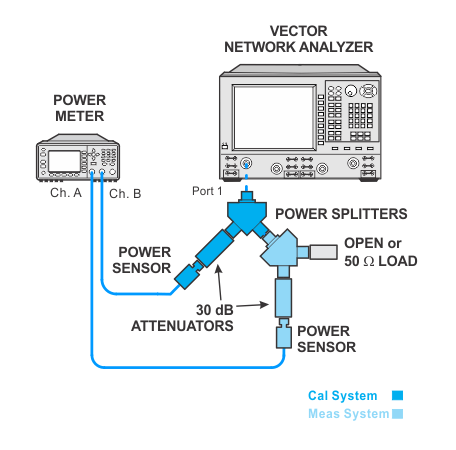

Connections on power meters with rear panel options will differ than those in the illustrations below. Refer to the rear panel of the power meter for connector identification labels.
|
Test Equipment |
Recommended Model Number1 |
|
Power Meter |
N1914B |
|
Power Sensor |
8481D |
|
Power Splitter |
11667A Option 001 |
|
Power Splitter |
11667A Option H85 or H86 |
|
30 dB attenuator |
11708A |
|
Network Analyzer |
N5247B |
|
N-Type Calibration Kit |
85032F |
|
Sensor cable |
11730A |
|
|

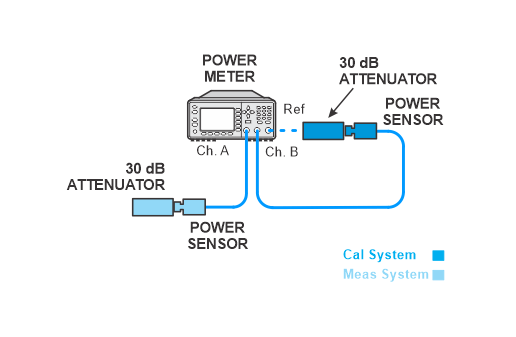

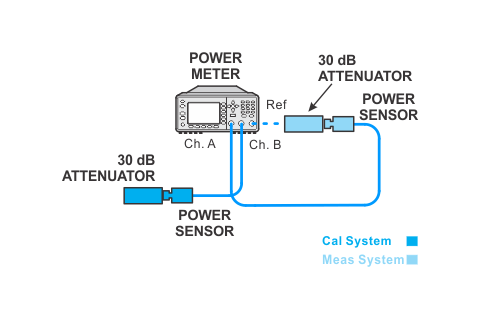

Connections on power meters with rear panel options will differ than those in the illustrations below. Refer to the rear panel of the power meter for connector identification labels. |
