Spectrum Analyzer Adjustment

This adjustment applies to the following models with firmware A.09.00 and above:

• N9913A/14A/15A/16A/17A/18A
• N9925A/26A/27A/28A

• N9935A/36A/37A/38A

For Fieldfox analyzers with firmware A.09.00 and above, TME will run the five spectrum analyzer adjustments as one "super" adjustment called the Spectrum Analyzer Adjustment. The adjustment uses two different equipment setups. Part one of the procedure will use a signal generator for frequencies above 15 MHz. The second part of the adjustment will use a function generator for frequencies from 9 kHz to 15 MHz.

Part One: Frequencies Above 15 MHz

This part of the Spectrum Analyzer Adjustment will run the following adjustments using a signal generator:

1. Absolute Amplitude
2. Frequency Response
3. Attenuator Slope

4. IF Frequency Response

Click here for equipment setup details.

Required Test Equipment

Test Equipment	Recommended Model Number (see main equipment list for alternative models)
Signal Generator #1	E8257D with options: 550 1E1 1EA or 1EU UNR or UNX or UNY
Power Meter	N1914A
Power Sensor 2 required; see NOTE below	E9304A Option H20
Power Sensor 2 required; see NOTE below	N8485A
Power Sensor 2 required; see NOTE below	8485D
Attenuator, 30 dB for Option 235	11708A
Power Splitter, 3.5 mm	11667B
Power Sensor Cable	11730A
BNC Cable	8120-2582
Coaxial Cable	11500E
Adapter, 3.5 mm (m) to Type-N (m)	1250-1743
Adapter, 3.5 mm (f) to 3.5 mm (f) for 3.5 mm source	83059B
Adapter, 2.4 mm (f) to 3.5 mm(f) for 2.4 mm source	11901B



All models require the E9304A H20 power sensors. N9917A, N9918A N9927A, N9928A N9937A, N9938AHigh frequency models (maximum frequency of 18 GHz or higher) require the N8485A power sensors. N9917A, N9918A N9927A, N9928A N9937A, N9938AHigh frequency models with Option 235 (preamplifier) require the 8485D power sensors to cover the low power range.



Connection Setups

The following notes apply to illustrations in the FieldFox Help: Only a single representative model will be shown. Some illustrations may differ than those in TME. For procedures that apply to multiple ports, illustrations will show the setup on only one test port.

Power Meter Calibration (all adjustments except Frequency Response)

Click here for Frequency Response power meter/sensors calibration and splitter characterization setups.

Reference Power Sensor Calibration, Channel A

(for power sensor E9304A only)

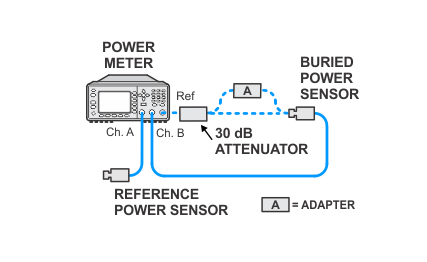

Buried Power Sensor Calibration, Channel B
(for power sensor E9304A only)

Power Sensor Calibration (for Option 235),
Channel A

Power Sensor Calibration (for Option 235),
Channel B

Splitter Characterization





Spectrum Analyzer Adjustment setup for high frequencies above 15 MHz

Part Two: Frequencies 9 kHz to 15 MHz

This part of the Spectrum Analyzer Adjustment will run the following adjustments using a function generator:

1. LO Feedthru
2. Frequency Response
3. Attenuator Slope

4. IF Frequency Response

Click here for equipment setup details:

Required Test Equipment

Test Equipment	Recommended Model Number (see main equipment list for alternative models)
Function Generator	33622A
Power Meter	N1914A
Power Sensor	E9304A Opt H20
Power Splitter	11667B
Power Sensor Cable	11730A
BNC Cable	8120-2582
Coaxial Cable	11500E
Adapter, 3.5 mm (m) to Type-N (m)	1250-1743



Connection Setups

The following notes apply to illustrations in the FieldFox Help: Only a single representative model will be shown. Some illustrations may differ than those in TME. For procedures that apply to multiple ports, illustrations will show the setup on only one test port.

Power Sensor Calibration

Spectrum Analyzer Adjustment setup for frequencies 9 kHz to 15 MHz
