Be sure to enter the appropriate positive value for Frequency Accuracy (ppm) under Additional Properties for the 10 MHz frequency standard. Using the default accuracy will produce very large measurement uncertainties in the test results.
N9960A/61A/62A

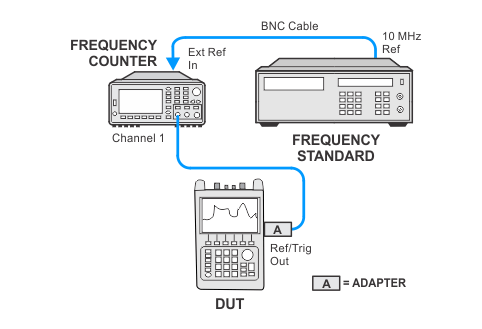

In this test the 10 MHz output is connected to a counter. The counter is locked to a reference that is 100 times more accurate than the signal analyzer time base. The 10 MHz output is measured by the frequency counter. The frequency is compared to the specification and a Pass/Fail determination is made.
|
|
Be sure to enter the appropriate positive value for Frequency Accuracy (ppm) under Additional Properties for the 10 MHz frequency standard. Using the default accuracy will produce very large measurement uncertainties in the test results. |
|
Test type: |
performance |
|
Related specification: |
Frequency Reference Accuracy |
|
Related adjustment: |
|
Test Equipment |
Recommended Model |
|---|---|
|
Frequency standard |
Microsemi 5071A |
|
Frequency counter |
53230A |
|
Cable, BNC |
8120-2582 |
|
Adapter, SMA (f) to BNC (f) |
1250-1200 |
|
|
