Downconverter Base Path Setup Adjustment

(M9393A)

The goal of this adjustment is to generate the path IDs defined for the current option set of the instrument. It will create both path IDs for both RF In and Aux2 In path IDs up to the frequency option.

Required Test Equipment

Test Equipment

Recommended Models1

50 W terminator

909D

Frequency reference module

M9300A
  1. Refer to the main required equipment list for alternative models.

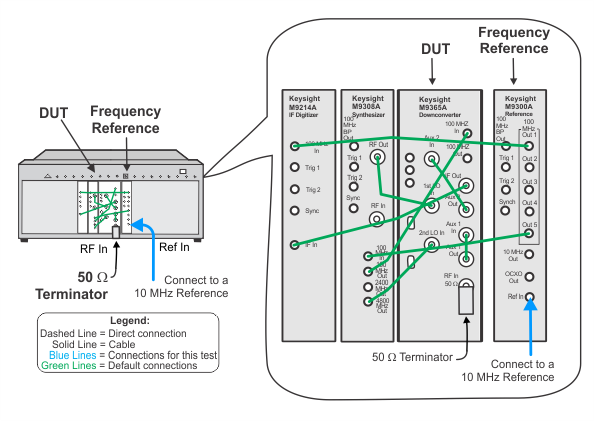

Connections and Setup Procedures
