The following adjustments are temperature sensitive and should be run together within the shortest timeframe possible to avoid affecting the absolute amplitude accuracy of the DUT:
|
|
The following adjustments are temperature sensitive and should be run together within the shortest timeframe possible to avoid affecting the absolute amplitude accuracy of the DUT: |

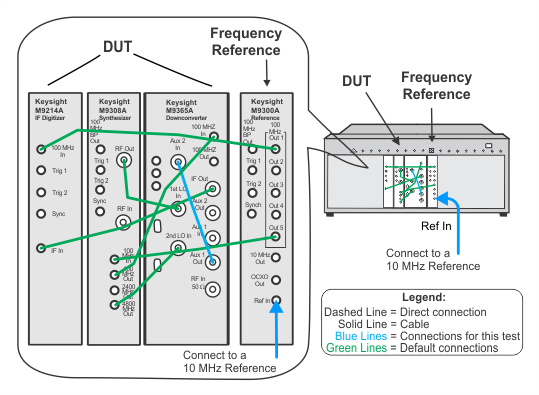

The goal of this adjustment is to measure the Super Cal internal calibrator’s response versus frequency and hardware state for the Aux2In configuration.
|
Test Equipment |
Recommended Models |
|
SMA cable, 2.4 mm (m) to 3.5 mm (m) |
M9393-20003 |
|
Frequency reference module |
M9300A |
