Downconverter Bias Adjustment

(M9391A)

This adjustment finds biasing point on the electronic attenuator leading to the 2nd mixer.

Required Test Equipment

Test Equipment1

Recommended Models

Frequency reference module

M9300A
  1. Refer to the main required equipment list for a list of available adapters and cables.

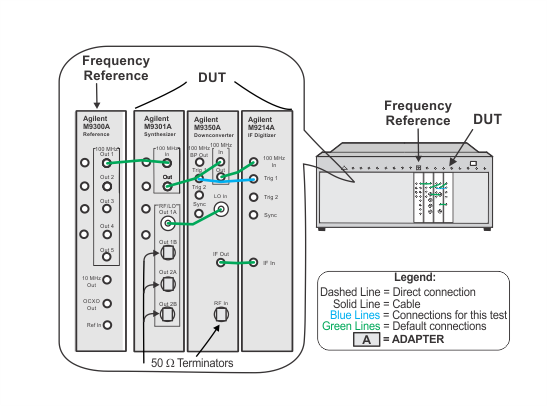

Connections and Setup Procedures
