Synthesizer VCO Adjustment

(M9391A)

This adjustment measures and aligns the gain of the VCO in the M9301A Synthesizer module’s phase locked loop.

Required Test Equipment

Test Equipment

Recommended Models1

50 W Terminator

909D

Frequency reference module

M9300A
  1. Refer to the main required equipment list for alternative models.

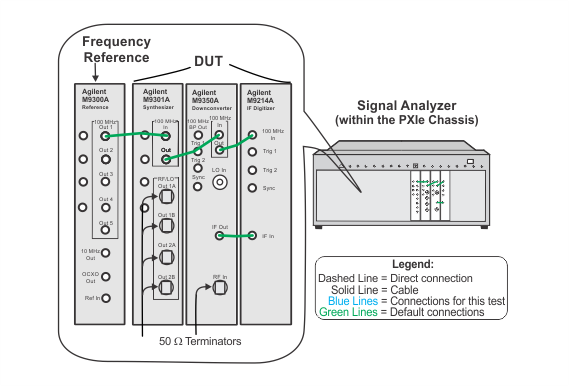

Connections and Setup Procedures
