LO Nulling Performance Test

(M9391A)

Not tested on Option F1A.

The intent of this test is to verify that the LO Nulling adjustment is working properly. LO Nulling is performed in both the Field Adjustments and the Self Alignment routine. LO feedthru occurs when the signal analyzer is tuned to 0 Hz. At 0 Hz, the LO is the same frequency as the first IF. When the LO is at the IF frequency, the LO power blasts down IF chain and is detected. The LO nulling circuity beats the LO against itself (in opposite phase) to cancel this feedthru signal. The LO Nulling routine adjusts the phase for the optimal nulling.

Click here for troubleshooting help.

Required Test Equipment

Test Equipment

Recommended Models1

50 W terminator

909D Opt 301

Frequency reference module

M9300A
  1. Refer to the main required equipment list for alternative models.

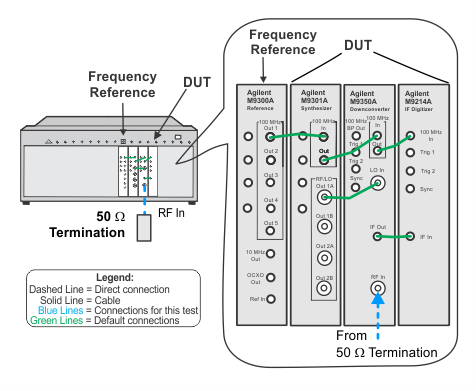

Connections and Setup Procedures
