Uncorrected Error Terms Performance Test

This test will check the hardware Error Terms developed during the calibration of a PXIe/USB vector network analyzer. These Error Terms represent hardware imperfections that have been characterized by the measurement of known standards with the intent that the Error Terms can be mathematically removed from any further measurements while using the VNA in its calibrated state, thus improving the accuracy of the VNA measurements.

The test process has been optimized by eliminating the full 2-port calibration. Therefore, the number of connections is reduced in half.

Click here for troubleshooting help.

Required Test Equipment

Test Equipment

Recommended Models1

ECal module, 3.5 mm

N4691D2 Option M0F

Cable, 3.5 mm (m) to 3.5 mm (f)

8121-2111

Adapter, 3.5 mm (m) to 3.5 mm (m)

83059A
  1. Refer to the main required equipment table for a list of alternate models.
  2. D-Model ECals have minimum firmware requirements for the DUT and network analyzer ETE. Refer to the footnote in the Required Equipment table for specific requirements.

Connections and Setup Procedures

Select from the links below according to the DUT.

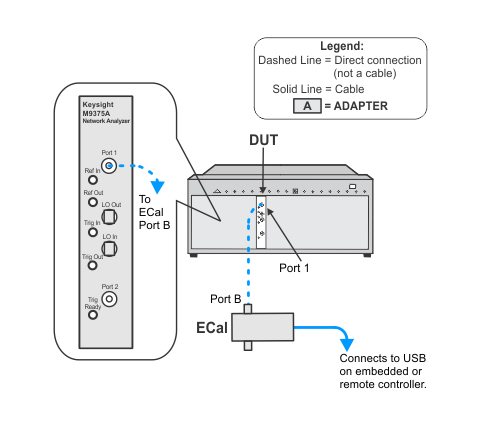

Measurement, port 1

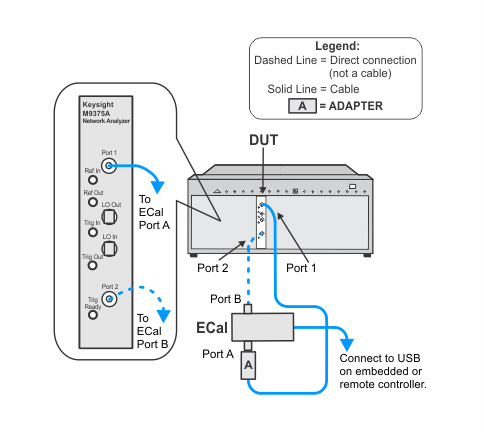

Measurement, port 2

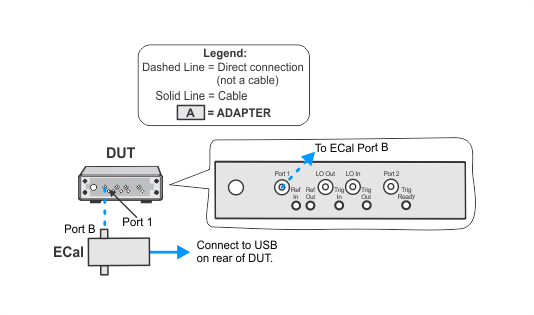

Measurement, port 1

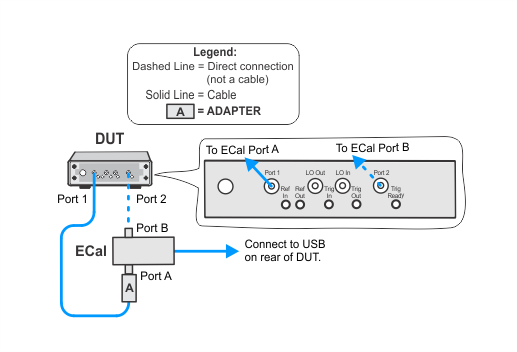

Measurement, port 2
