Freq Resp Low Freq Adjustment

In this adjustment, flatness corrections are turned off and amplitude error versus frequency is measured from 9 kHz to 3 GHz (Option F03), or 7.5 GHz (Options F07, F13, and F26) for Preamp Off, and from 100 kHz to 3 GHz (Option P03), or 7.5 GHz (Options P07, P13, and P26) for Preamp On. The data is then normalized to 50 MHz to generate corrections relative to 50 MHz. Flatness corrections are generated for each attenuator step for both preamp off and on. The data is then stored in the analyzer memory.

Required Test Equipment

Test Equipment

Recommended Model Number1

Microwave signal generator #1

PSG models
(see main equipment list)

Function generator

33622A

Power meter

N1914A

RF power sensor

  • 2 required

E9304A Option H20

Power splitter

11667B

Cable, BNC (m) to SMB (f)

8121-2063

Cable, BNC (m) to BNC (m)

8120-2582

Cable, Coaxial 3.5 mm (m) to 3.5 mm (m)

11500E

Adapter, BNC (f) to 3.5 mm (m)

1250-1200

Adapter, 3.5 mm (m) to 3.5 mm (m)2

83059A

Adapter, 3.5 mm (f) to 3.5 mm (f)

  • For 3.5 mm source

83059B

Adapter, 2.4 mm (f) to 3.5 mm (f)

  • For 2.4 mm source

11901B

Adapter, 3.5 mm (f) to Type-N (m)

1250-1744
  1. Refer to the main equipment list for a list of alternative models (if available).
  2. The 3.5 mm (m) to 3.5 mm (m) adapter between the power splitter and the DUT is critical in this adjustment. Proper connector care and torqueing practices must be followed in order to insure optimal performance.

Connection Setups

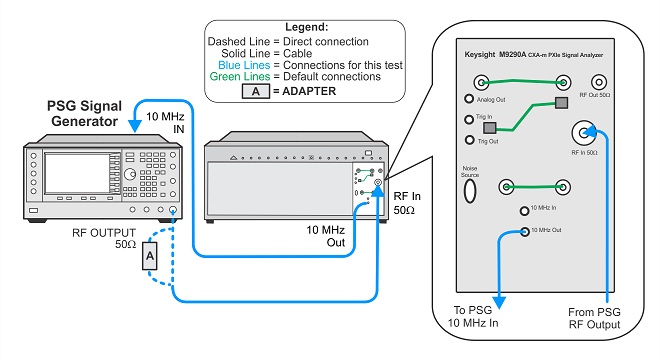

50 MHz to 3.0 / 7.5 GHz Adaptive Flatness Setup



Power Meter Calibration

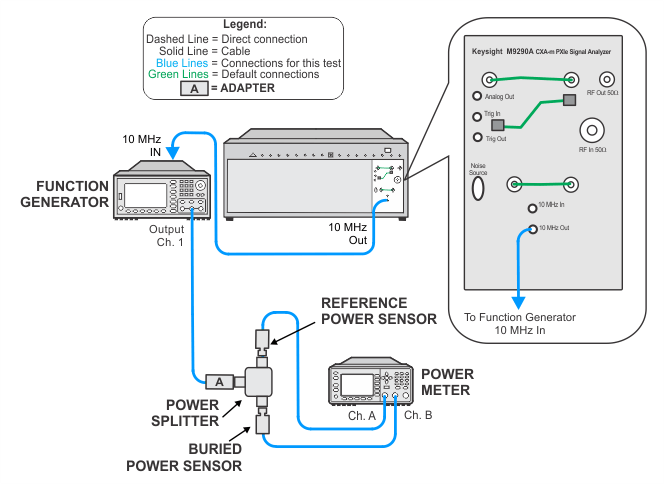

Frequency Response 9 kHz to 50 MHz Splitter Characterization

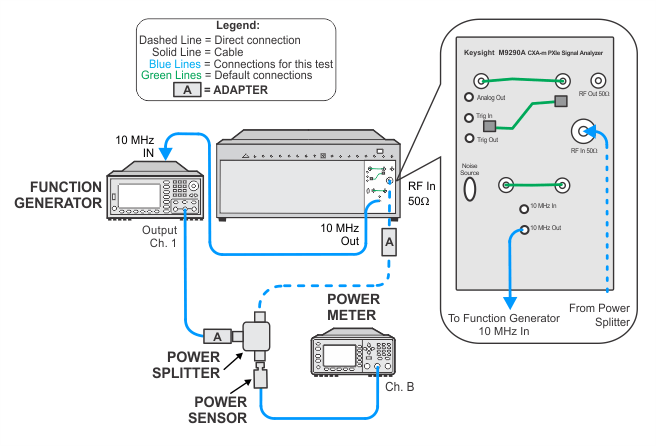

Frequency Response 9 kHz to 50 MHz Adjustment Setup



Frequency Response 50 MHz to 3.0 / 7.5 GHz Splitter Characterization



Frequency Response 50 MHz to 3.0 / 7.5 GHz Adjustment Setup
