CIR vs Time (Channel Sounding)

Menu Path: Trace > Data > Doppler > Channel N > CIR vs Time

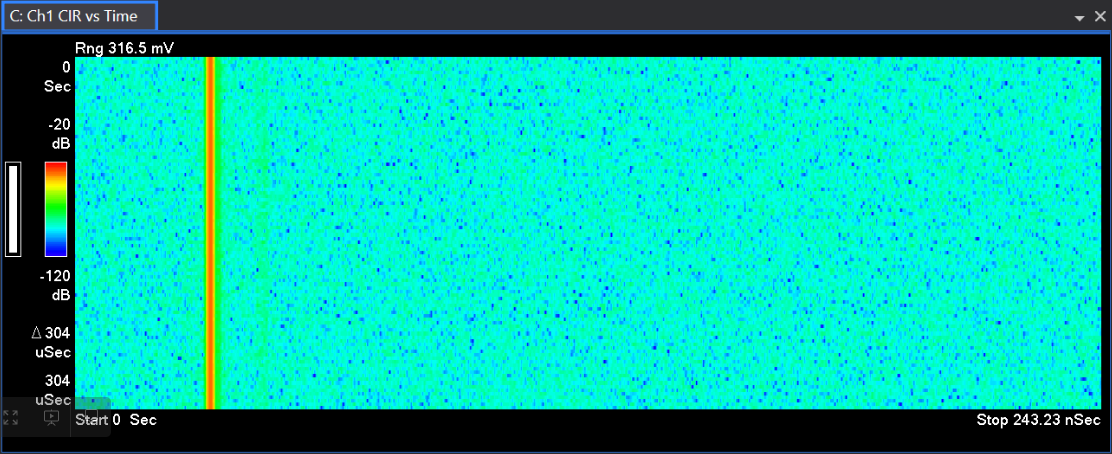

CIR vs Time shows the accumulated Channel Impulse Responses (CIR) in the form of a spectrogram.
