Delay Doppler Map (Channel Sounding)

Menu Path: Trace > Data > Doppler > Channel N > Delay Doppler Map

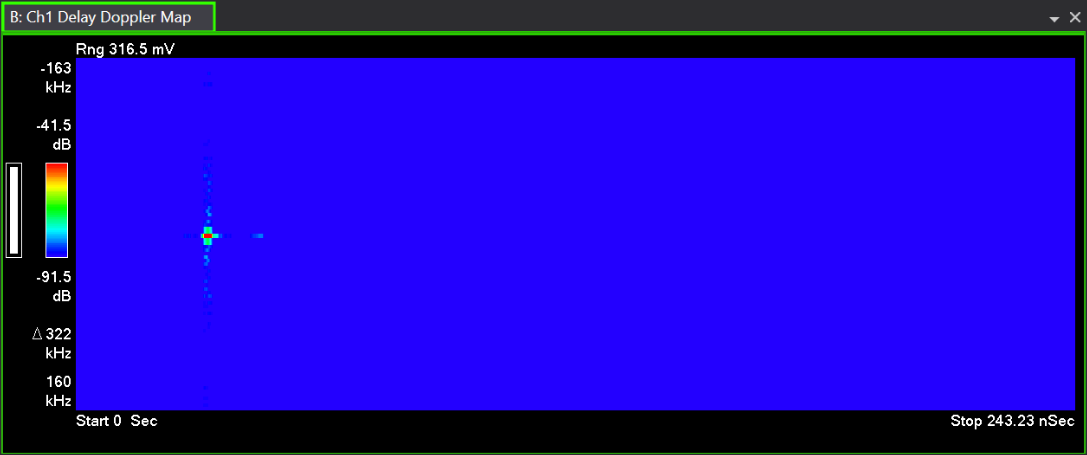

Delay Doppler Map is a delay doppler map created from the CIR vs Time trace by doing an FFT Fast Fourier Transform: A mathematical operation performed on a time-domain signal to yield the individual spectral components that constitute the signal. See Spectrum. vertically over each point in the CIRs.

See Also

CIR vs Time

CFR vs Time

Doppler vs Frequency

Available Trace Data

Delay Doppler Parameters
