Application Licenses

Licenses are available for oscilloscope applications like jitter analysis, advanced signal integrity analysis, PAM-N signal analysis, etc.

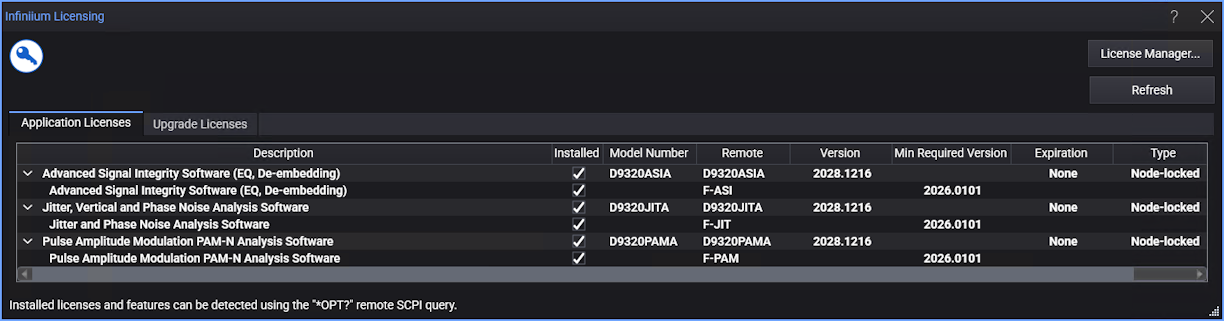

To view the application licenses, choose Tools > Licensing...; then, in the Infiniium Licensing dialog box, select the Application Licenses tab.

Application Features

Feature	Remote1	Model Number
Advanced Signal Integrity Software (EQ, De-embedding)	F-ASI	D9320ASIA
Jitter, Vertical and Phase Noise Analysis Software	F-JIT	D9320JITA
Pulse Amplitude Modulation PAM-N Analysis Software	F-PAM	D9320PAMA
Footnotes:
1. Characters that identify a feature in the string returned by the *OPT? common programming query.
