Attenuator

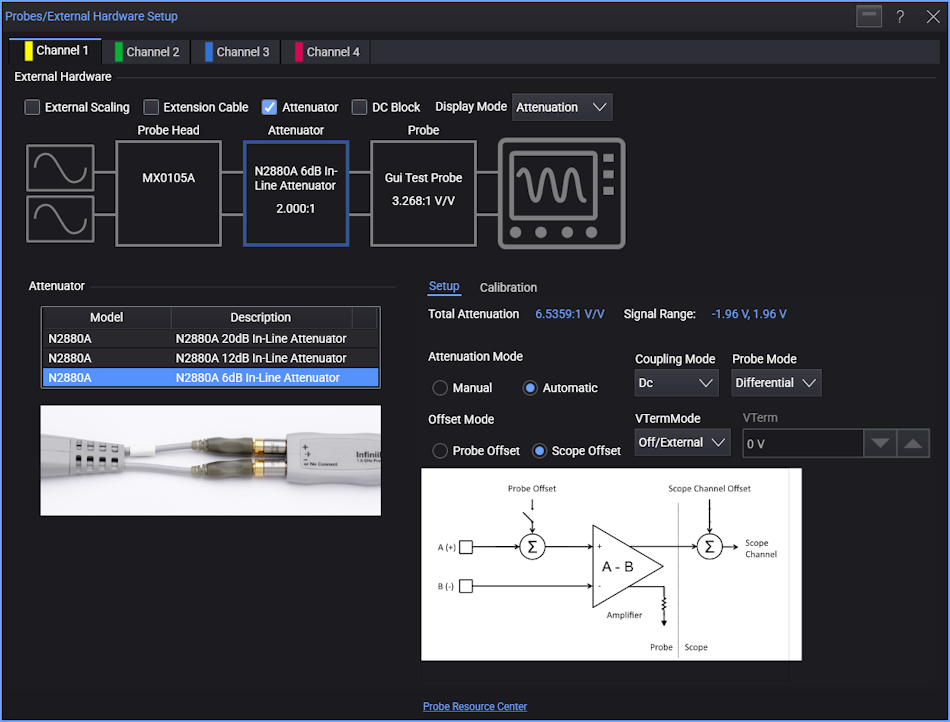

When the Attenuator block in the Probe Setup dialog box diagram is selected, you can choose the model number of the attenuator being used.

Descriptions and pictures of the attenuators are shown to help with identification.
