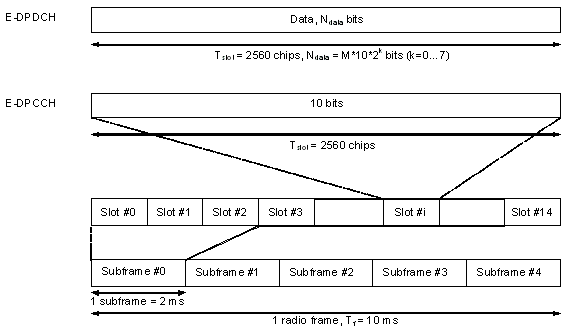

In the figure above, M is the number of bits per modulation symbol, where M=1 for BPSK and M=2 for 4PAM. Modulation selection is a feature provided with Option FFP.
|
Slot Format |
Channel Bit Rate (kbps) |
Bits/Symbol (M) |
Spread Factor |
Bits/Frame |
Bits/Sub frame |
Data Bits/Slot |
|---|---|---|---|---|---|---|
|
0 |
15 |
1 |
256 |
150 |
30 |
10 |
|
1 |
30 |
1 |
128 |
300 |
60 |
20 |
|
2 |
60 |
1 |
64 |
600 |
120 |
40 |
|
3 |
120 |
1 |
32 |
1200 |
240 |
80 |
|
4 |
240 |
1 |
16 |
2400 |
480 |
160 |
|
5 |
480 |
1 |
8 |
4800 |
960 |
320 |
|
6 |
960 |
1 |
4 |
9600 |
1920 |
640 |
|
7 |
1920 |
1 |
2 |
19200 |
3840 |
1280 |
|
8 |
1920 |
2 |
4 |
19200 |
3840 |
1280 |
|
9 |
3840 |
2 |
2 |
38400 |
7680 |
2560 |
|
Slot Format |
Channel Bit Rate (kbps) |
Spread Factor |
Bits/Frame |
Bits/Sub frame |
Data Bits/Slot |
|---|---|---|---|---|---|
|
0 |
15 |
256 |
150 |
30 |
10 |
