Channels - Code Domain Graphics

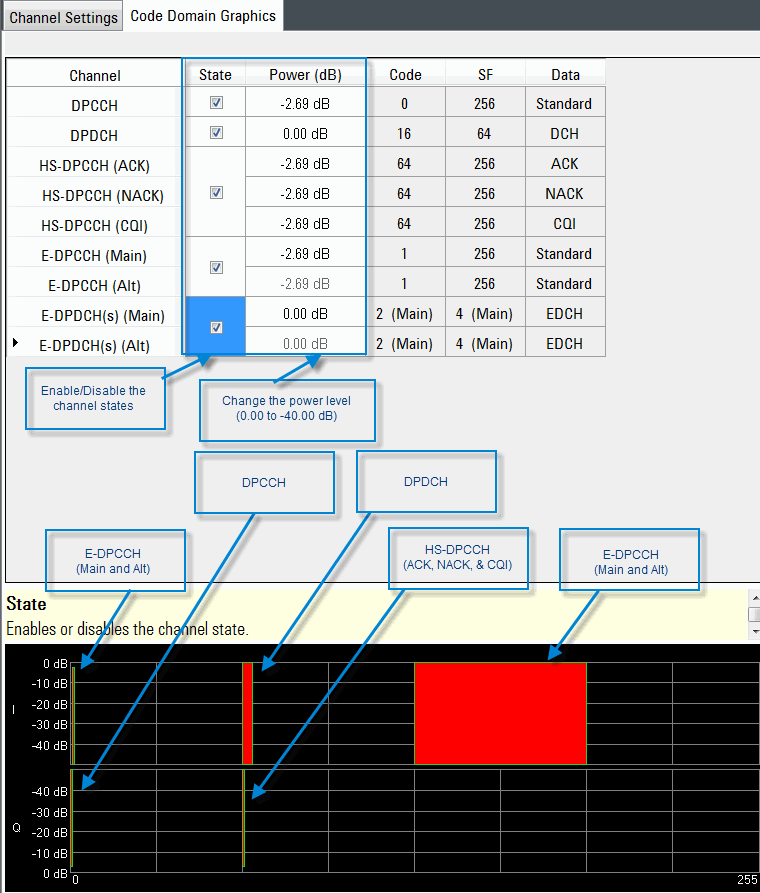

Channels, controls the states and power levels for the uplink channels. Also, displays the channel coding, spreading factor (SF), and data-type information.

Refer to RMC FRC Wizard and to Channels DPCCH/DPDCH).

Channel Enables or disables the channel state. The E-DPCCH and E-DPDCH states are shown by the combination result of the HSUPA and E-DPCCH/E-DPDCH states. When the E-DPCCH or E-DPDCH state is set to On, the state of HSUPA is also set to On.
State Enables or disables the channel state. The E-DPCCH and E-DPDCH states are shown by the combination result of the HSUPA and E-DPCCH/E-DPDCH states. When the E-DPCCH or E-DPDCH state is set to On, the state of HSUPA is also set to On.
Power (dB) Sets the power level in dB. The Alt field is disabled when the TFC E-TFCI Pattern is set to "Main All".
Code Indicates the channel code.
Spreading Factor (SF) Indicates the spreading factor.
Data Indicates the data pattern.
