Timeslots: Basic 1xEV-DO Rev.0 Forward

Timeslot Number	MAC RA State	MAC RPC State
Traffic Channel State	MAC RA Data
Traffic Channel Modulation	MAC RA Gain

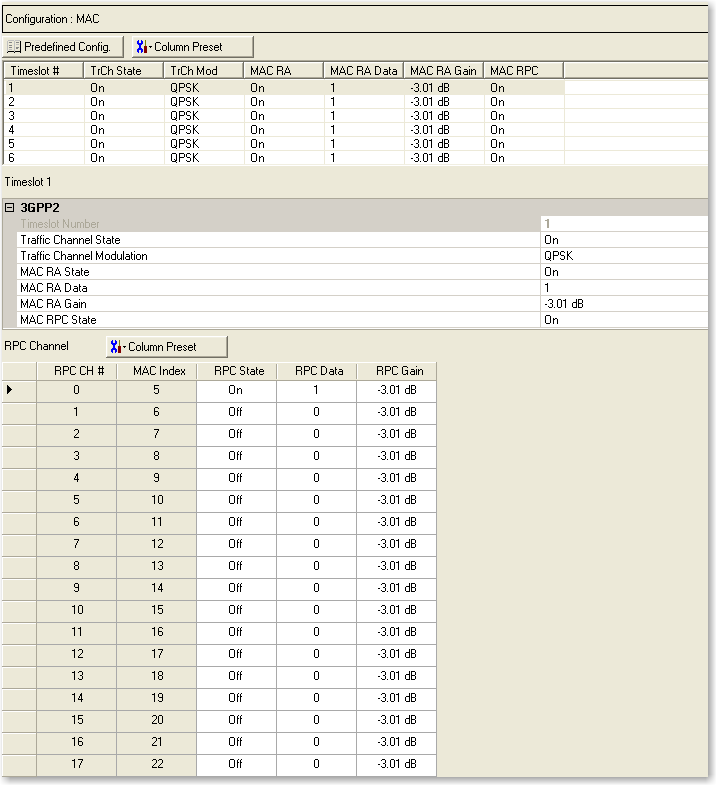

Timeslot Configuration Summary Table

This table enables you to view the key parameters for the channels in each timeslot. Double-clicking a row activates the setup tables for that timeslot. You can use a maximum of 16 timeslots per carrier.

Opens a Closed drop-down menu of predefined channel configuration selections. Clicking a configuration replaces the current configuration in the Channel Configuration window and displays it at the top of the window.

Opens a Closed drop-down menu which allows you to automatically change the timeslot channel parameters according to a selectable pattern rather than manually editing each timeslot.

Click each of the following for descriptions of available choices.

Closed TrCh State

All On	activates the traffic channel in all timeslots.
75% On	activates the traffic channel in 75 percent of the timeslots. Starting with TS#4, the traffic channel is disabled in every fourth timeslot.
50% On	activates the traffic channel in 50 percent of the timeslots. Starting with TS#1, the traffic channel is activated in every other timeslot.
25% On	activates the traffic channel in 25 percent of the timeslots. Starting with TS#4, the traffic channel is activated in every fourth timeslot.
All Off	turns off the traffic channel in all timeslots.
Mixed	activates the traffic channel in a random number of timeslots.

Closed TrCh Mod

QPSK	assigns QPSK as the traffic channel modulation type for all timeslots.
8PSK	assigns 8PSK as the traffic channel modulation type for all timeslots.
QAM16	assigns QAM16 as the traffic channel modulation type for all timeslots.
Mixed	randomly assigns a mixture of QPSK, 8PSK, and QAM16 traffic channel modulation types to all the timeslots.

Closed MAC RA

All On	activates the MAC RA channel in all timeslots.
75% On	activates the MAC RA channel in 75 percent of the timeslots. Starting with TS#4, the RA channel is disabled in every fourth timeslot.
50% On	activates the MAC RA channel in 50 percent of the timeslots. Starting with TS#1, the RA channel is activated in every other timeslot.
25% On	activates the MAC RA channel in 25 percent of the timeslots. Starting with TS#4, the RA channel is activated in every fourth timeslot.
All Off	turns off the MAC RA channel in all timeslots.
Mixed	activates the MAC RA channel in a random number of timeslots.

Closed MAC RA Data

0s	sets the RA data to 0 in all timeslots
1s	sets the RA data to 1 in all timeslots.
01..	alternates 0 and 1 as the RA data across all timeslots.
10..	alternates 1 and 0 as the RA data across all timeslots.
Mixed	randomly assigns a mixture of 0s and 1s as the RA data across all timeslots.

Closed MAC RA Gain

+3	sets the relative power of the RA channel to 3 dB in all timeslots
0	sets the relative power of the RA channel to 0 dB in all timeslots.
–3	sets the relative power of the RA channel to –3 dB in all timeslots.
–6	sets the relative power of the RA channel to –6 dB in all timeslots.
–10	sets the relative power of the RA channel to –10 dB in all timeslots.
–20	Sets the relative power of the RA channel to –20 dB in all timeslots.
Mixed	randomly assigns a mixture of 3, 0, –3, –6, –10, and –20 dB as the relative power of the RA channel across all timeslots.
Set Value...	A window appears where you can set the relative power of the RA channel in all timeslots. The range is –30 dB to 30 dB.
Normalize MAC (RA + RPC)...	A window appears where you can set the target power relative to the pilot power. The sum of the RA gain and the RPC gain are automatically adjusted to the target power relative to the Pilot power. The setting is applied only for activated MAC RA and MAC RPC channels.
Normalize RA..	A window appears where you can set the target power relative to the pilot power. The RA gain is automatically adjusted to the target power relative to the Pilot power. The setting is applied only for activated MAC RA channels.

Closed MAC RPC

All On	Activates the MAC RPC channel in all timeslots.
75% On	Activates the MAC RPC channel in 75 percent of the timeslots. Starting with TS#4, the RPC channel is disabled in every fourth timeslot.
50% On	Activates the MAC RPC channel in 50 percent of the timeslots. Starting with TS#1, the RPC channel is activated in every other timeslot.
25% On	Activates the MAC RPC channel in 25 percent of the timeslots. Starting with TS#4, the RPC channel is activated in every fourth timeslot.
All Off	Turns off the MAC RPC channel in all timeslots.
Mixed	Activates the MAC RPC channel in a random number of timeslots.
RPC Parameter Clone 1	Copies MAC RPC parameters of TS#1 to all timeslots.
RPC Parameter Clone 1,2	Copies MAC RPC parameters of TS#1 and TS#2 to all timeslots. Odd numbered TS parameters are copied from TS#1. Even numbered TS parameters are copied from TS#2.
RPC Parameter Default	Sets all MAC RPC parameters to default values.

3GPP2

Timeslot Number

Designates the timeslot number. You cannot edit cells in this column

Traffic Channel State

Selections: On, Off

Default: On

Sets the traffic channel state for the selected timeslot to on or off.

Traffic Channel Modulation

Selections: QPSK, 8PSK, 16QAM

Default: QPSK

Sets the traffic channel modulation type for the selected timeslot.

MAC RA State

Selections: On, Off

Default: On

Sets the medium access control (MAC) reverse activity (RA) channel state for the selected timeslot to on or off. The RA channel provides flow control information to the access terminal.

MAC RA Data

Selections: 0, 1

Default: 1

Sets the medium access control (MAC) reverse activity (RA) channel information bit for the selected timeslot. The bit is set to either a 0 or 1 in each timeslot.

MAC RA Gain

Range: –30 dB to 30 dB

Default: –3.01 dB

Sets the medium access control (MAC) reverse activity (RA) channel gain (relative to the pilot channel) for the selected timeslot.

MAC RPC State

Selections: On, Off

Default: On

Sets the medium access control (MAC) reverse power control (RPC) channel state for the selected timeslot.

RPC Channel

Opens a Closed drop-down menu which allows you to automatically change the timeslot channel parameters according to a selectable pattern rather than manually editing each timeslot.

Click each of the following for descriptions of available choices.

RPC State

All On	activates all RPC channels in a selected slot.
75% On	activates 75 percent of the RPC channels in a selected slot.
50% On	activates 50 percent of the RPC channels in a selected slot.
25% On	activates 25 percent of the RPC channels in a selected slot.
All Off	turns off all RPC channels in a selected slot.
Mixed	activates a random number of RPC channels in a selected slot.

RPC Data

0s	sets the RPC data to 0 in all RPC channels of a selected slot.
1s	sets the RPC data to 1 in all RPC channels of a selected slot.
01..	alternates 0 and 1 as the RPC data across all RPC channels of a selected slot.
10..	alternates 1 and 0 as the RPC data across all RPC channels of a selected slot.
Mixed	randomly assigns a mixture of 0s and 1s as the RPC data across all RPC channels of a selected slot.

RPC Gain

+3	sets the relative power of all RPC channels to 3 dB.
0	sets the relative power of all RPC channels to 0 dB.
–3	sets the relative power of all RPC channels to –3 dB.
–6	sets the relative power of all RPC channels to –6 dB.
–10	sets the relative power of all RPC channels to –10 dB.
–20	sets the relative power of all RPC channels to –20 dB
Mixed	randomly assigns a mixture of 3, 0, -3, –6, –10, and –20 dB as the relative power across all RPC channels.
Set Value...	A window appears where you can set the relative power of all RPC channels. The range is –30 dB to 30 dB.
Normalize...	A window appears where you can set the target power relative to the pilot power. The RPC gain is automatically adjusted to the target power relative to the Pilot power. The setting is applied only for activated RPC channels.

RPC CH #

Displays the reverse power control (RPC) channel number (0 - 58). You cannot edit cells in this column

MAC Index

Designates the medium access control (MAC) Index. You cannot edit cells in this column.

RPC State

Selections: On, Off

Default: Off

Sets the state for each reverse power control (RPC) channel to on or off.

RPC Data

Selections: 0, 1

Default: 0

Sets the reverse power control (RPC) channel bits. Each RPC channel carries a single power control data bit per timeslot to a unique active access terminal. The access terminal will raise or lower power depending on whether a 0 or a 1 data bit is sent respectively. The data bit for each active RPC channel can be individually defined.

RPC Gain

Range: –30 dB to 30 dB

Default: –3.01 dB

Sets the reverse power control (RPC) channel gain (relative to the pilot channel).
