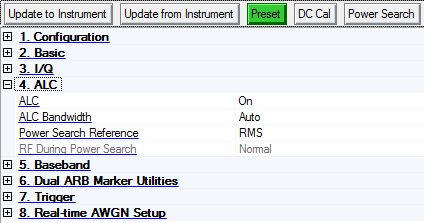

4. ALC

M9381A

ALC

Choice: Off | On

Default: On

Double-click or use the drop-down menu to enable or disable the automatic level control.

On – The ALC circuit constantly monitors and controls the output power level.

Off – No automatic leveling occurs.

ALC Trigger Source Bus

Choice: AUTO | PXI0 | ... | PXI7

Default: AUTO

Double-click or use the drop-down menu to select a bus for ALC hold signal path on PXI backplane.

ALC Hold Mode

Choice: Off | Track on Marker | Hold on Marker

Default: Track on Marker

Double-click or use the drop-down menu to select how the ALC circuit in the output module functions when the ALC is enabled. ▪ Off − ALC hold is turned off. ▪ Track on Marker − When playing a waveform file and a Marker is crossed in the waveform file, the ALC will track on the Marker. ▪ Hold on Marker − When playing a waveform file and a Marker is crossed in the waveform file, the ALC will hold on that Marker.

ALC Bandwidth

Choice: Auto | 100.00 Hz | 1.00 kHz | 10.00 kHz | 100.00 kHz

Default: Auto

Double-click or use the drop-down menu to select an ALC bandwidth.

This parameter is not available for all instrument model numbers and may be grayed out.

Power Search Reference

Choice: Fixed | Modulation | RMS

Default: Modulation

Double-click or use the drop-down menu to select one of the following reference signals when doing a power search.

Fixed – Power search uses a fixed 0.5 V reference.

Modulation – Power search uses the AC bias from the actual modulating signal.

RMS – Power search uses a DC bias value equivalent to the value derived from the file header or the calculated value from the current I/Q data.

Set ALC to Off to enable this parameter.

RF During Power Search

Choice: Normal | Minimum

Default: Normal

Double-click or use the drop-down menu to select the level of the output power control during a power search routine.

Normal – Performs power searches without setting the internal step attenuator to its maximum setting. Glitches and power changes may be present during the search.

Minimum – Sets the signal generator's step attenuator to its maximum setting during power search to protect sensitive circuits.

Set ALC to Off to enable this parameter.
