Step 4 -  Equipment Setup

Installation Steps: 1  2  3  4


1. Ensure the signal generator is turned off.

2. Connect the signal generator to a computer using one of the following methods for instrument control:

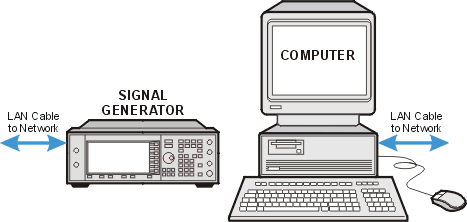

• LAN Network—connect both the signal generator and the computer to an external LAN network using standard LAN cables.

  ---

  Equipment Setup

  Equipment Required One 10Base-T cable for the PC and one for each instrument connected to a network LAN

  ---

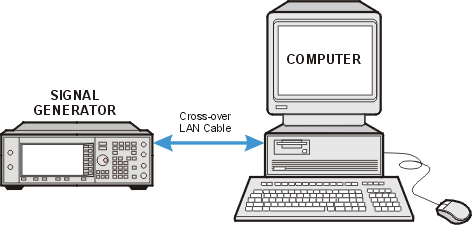

• Crossover LAN—connect the signal generator directly to the computer using a crossover LAN cable.

  ---

  Equipment Setup

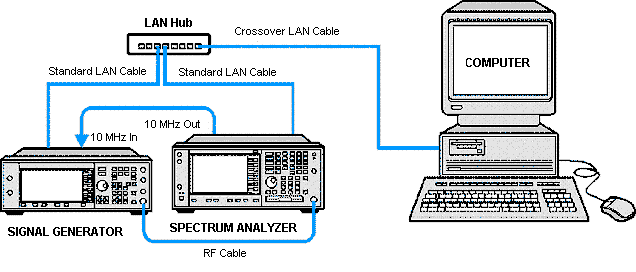

  Equipment Required One 10Base-T crossover cable for the PC If connecting more than one instrument: one 10Base-T crossover cable for the PC one 10Base-T cable for each instrument one 10Base-T hub

  ---
