Starting and Exiting Millimeter Wave Mode

In this topic:

Note: The Low Frequency Extension (LFE) is disabled by default. LFE must be enabled to extend the low-end frequency range from 10 MHz down to 900 Hz.

Starting the Soft Front Panel (SFP)

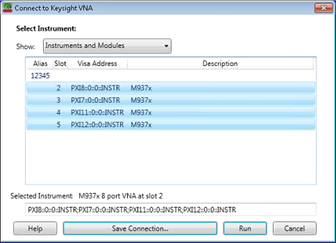

  1. Click on the host controller desktop to start the Soft Front Panel (SFP). The following Launcher dialog appears.

  1. Select the desired modules (one millimeter port per module) then click Run.

Starting Millimeter Wave Mode

How to start Millimeter Wave Mode

Using Hardkey/SoftTab/Softkey

Using a mouse

  1. Press Setup > External Hardware > Millimeter Config.

  2. In the Millimeter Configuration dialog, select a banded or broadband configuration.

  3. Configure the system then click OK.

  1. Click Instrument

  2. Select Setup

  3. Select External Hardware

  4. Select Millimeter Config...

  5. In the Millimeter Configuration dialog, select a banded or broadband configuration.

  6. Configure the system then click OK.

Exiting Millimeter Wave Mode

How to exit Millimeter Wave Mode

Using Hardkey/SoftTab/Softkey

Using a mouse

  1. Press Setup > External Hardware > Millimeter Config.

  2. In the Millimeter Configuration dialog, select Standard PNA.

  3. Click OK.

  1. Click Instrument

  2. Select Setup

  3. Select External Hardware

  4. Select Millimeter Config...

  5. In the Millimeter Configurationn dialog, select Standard PNA.

  6. Click OK.
