Licensed Features

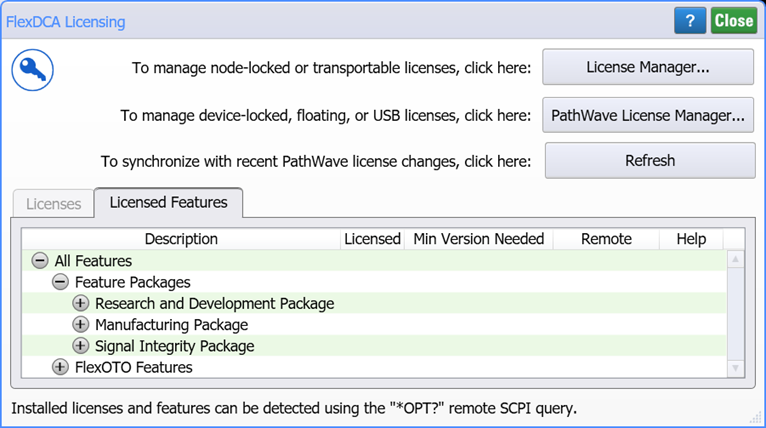

The Licensed Features tab in the Licensing dialog shows Flex-series application features added by software package licenses listed in the dialog's Licenses tab. These features are not available on their own as a single license.

Click Tools > Licensing… to open the Licensing dialog.

FlexPLL Package Licensed Features

OPT?1	Feature	FlexDCA Package Licenses			FlexOTO Package Licenses
		N1010100A (L-RND1)	N1010200A (L-MFG1)	N1010300A (L-SNT1)	N1002000A (L-OTO1)	N1002014A (L-OTO171)	N1002048A (L-OTO481)	N1002128A (L-OTO1281)
F-AEYE	Advanced Eye Analysis	■
F-AFR	Automatic Fixture Removal in TDR Mode			■
F-AOP	AWG Waveform Optimization	■
F-ATDR	Enhanced Impedance and S-Parameters		■	■
F-AWG	Keysight Arbitrary Waveform Generator Control	■
F-C03	Output Jitter Measurements on Composite Histogram of R03/F30 Edges.	■
F-CSIG	Chord Operators (CNRZ-5-EE, ENRZ)	■
F-DCLK	Direct Clock							■
F-DFE	DFE Enhancements: Pulse Response Optimization.	■
F-ENH1	Enhancements 2020	■	■	■
F-EECQ	Electrical Eye Closure Quaternary measurement	■	■
F-EQ	Equalizers (CTLE, DFE, LFE)	■
F-ESP	Extended S-Parameters			■
F-FDR	Fractional Divide Ratio	■	■
F-FEYE	FlexEye Independent Eye Acquisition and Analysis	■	■
F-FLEX	FlexDCA Remote Access Software	■	■	■
F-FTUNE	Fast Acquisition for DUT Tuning				■	■	■	■
F-INF	Remote connection from FlexRT on a PC to a UXR-series oscilloscope.	■
F-IREP	Instrument Report.	■	■	■
F-JIT	Enhanced Jitter Analysis	■
F-JSA	Jitter Spectrum Analysis and SW Clock Recovery Emulation	■		■
F-LEV	PAM Inner Level Amplitude Adjustment	■
F-LSNR	Low SNR TDECQ	■	■			■	■	■
F-MMFE	Multi-Mode Fiber Emulation for TDECQ Measurements	■	■
F-OTO	FlexOTO (Optical Test Optimizer)	■			■	■	■	■
F-PAM	PAM-N Analysis Software	■	■
F-PAT	Pattern Waveform Analysis	■
F-PCOM	Compensates pattern distortion in the recovered clock	■	■		■	■	■	■
F-PEAK	Peak Measurements at Hit Ratio: Overshoot, Undershoot and Peak to Peak Amplitude.	■	■
F-PEECQ	Partial Electrical Eye Closure Quaternary measurement	■
F-PFIT	Adds a Pulse Fit signal processing operator.	■
F-PLL	FlexPLL application that measures Jitter Transfer Function on devices with a PLL.			■
F-PMASK	PAM4 Mask Test Measurements.	■	■
F-PTDQ	Partial TDECQ, Noise Margin, and SER Measurements	■
F-RAN	Random Noise: Bandwidth limiting and 802.3cd (η0) support	■
F-RRX	Provides a reference receiver Waveform Signal Processing operator that allows joint FFE/DFE optimization	■	■
F-SIM	InfiniiSim-DCA Waveform Transformation Toolset	■
F-SKP	Specify pattern for equalizers and jitter mode	■
F-SNDR	Signal-to-Noise-and-Distortions Ratio (SNDR) Feature	■
F-SW17	FlexOTO 17 Port Switch Support					■
F-SW48	FlexOTO 48 Port Switch Support						■
F-SW128	FlexOTO 128 Port Switch Support							■
F-SWITCH	Optical Switch Direct Control	■			■	■	■	■
F-TDEC	NRZ TDEC Measurement	■	■
F-TDQ	TDECQ Measurement and Equalizer	■	■
F-UDI	Unrestricted Data File Import	■			■	■	■	■
F-UDMO	User Defined Measurements and Operators	■		■
F-VEC	VEC Measurements.	■	■
