Noise Floor — Normal Variant

Equipment & Setups

  • Before starting this test, verify that the Report Receiver Overload box is un-checked (off). To check the status of this setting, from the PNA menu, go to Utility > System > System Setup > Preferences...

    Scroll down to the bottom of the selections. Be sure the box is un-checked (off).

  • Be sure that ClosedPause on test point fail is not selected for this test.

This topic shows the required equipment and connection setups for PNA models running the Normal Variant test plan. For more information about test plan variants, refer to the Test Plan Variants topic.

For test description, go to the topic's Overview page.

Required Test Equipment

Below is the required test equipment separated by the DUT connector type. Select the link that applies to the connector type for your PNA model.

for 3.5 mm connection models:

N5241A/AS/B/BC, N5242A/AS/B, N5242AH85, N5249A/AS/B
N5221A/AS/B, N5222A/AS/B
N5231A/AS/B, N5232A/AS/B, N5239A/AS/B
N5230A/C with option 12x, 14x, 22x, 24x, or 02x

3.5 mm Connection Models
Normal Variant

Test Equipment

Recommended Model

Alternate Model

Power meter

N1914A

E4419A/B
EPM-442A
N1912A

Power sensor

N8482A

8482A

Power sensor

N8485A

E9300A H25
8485A

Calibration kit 3.5 mm
(only loads and one adapter are needed)

85052B

none

Power sensor cable
(Qty 2)

11730A

equivalent

Cable RF 3.5 mm

85131-60013

85131-60010
(not for 4-port)

Adapter 3.5 mm (f) to 3.5 mm (f)

83059B

1250-1749

Adapter 3.5 mm (m) to Type-N (f)

1250-1750

equivalent

Adapter 3.5 mm (f) to Type-N (m)
(for power sensor calibration)

1250-1744

08485-60005



for 2.4 mm connection models:

N5244A/AS/B, N5245A/AS/B/BC
N5224A/AS/B, N5225A/AS/B
N5234A/AS/B, N5235A/AS/B
N5230A/C with option 42x or 52x

2.4 mm Connection Models
Normal Variant

Test Equipment

Recommended Model

Alternate Model

Power meter

N1914A

E4419A/B
EPM-442A
N1912A

Power sensor

N8482A

8482A

Power sensor

N8487A

8487A

Calibration kit 2.4 mm
(only loads and one adapter are needed)

85056A

none

Gain Compression Test Set
(for N5230A/C)

Z5623A Opt. K01

none

Gain Compression Test Set
(for N5234A/AS/B, N5235A/AS/B)

U3070AK01

none

Cable 2.4 mm (f) to 2.4 mm (m)
(qty. 2)
(for N5234A/AS/B, N5235A/AS/B, N5230A/C)
(comes with compression test set)

8121-2065

none

Power sensor cable
(Qty 2)

11730A

equivalent

Adapter 2.4 mm (f) to 2.4 mm (f)

11900B

equivalent

Adapter 2.4 mm (m) to Type-N (f)

11903C

equivalent

Adapter 2.4 mm (f) to Type-N (m)
(for power sensor calibration)

11903D

08487-60001



for 1.85 mm connection models:

N5247A/AS/B/BC, N5227A/AS/B

1.85 mm Connection Models
Normal Variant

Test Equipment

Recommended Model

Alternate Model

Power meter

N1914A

E4419A/B
EPM-442A
N1912A

Power sensor

N8482A

8482A

Power sensor

N8487A

8487A

Power sensor

N8488A

V8486A with the V281A waveguide adapter1
(includes Option H67)2

Load 1.85 mm (f) 3
(qty 2)

85058-60112

85058-60124

Cable 1.85 mm (f) to 1.85 (f)

8121-2921

N4697-60100

Power sensor cable
(qty 2)

11730A

equivalent

Adapter 1.85 mm (m) to 1.85 mm (m)
(may come from 85058B cal kit)

85058-60113

none

Adapter 2.4 mm (m) to Type-N (f)

11903C

equivalent

Adapter 2.4 mm (f) to Type-N (m)
(for power sensor calibration)

11903D

08487-60001
  1. Combination of the V8486A power sensor and V281A adapter must be calibrated as a single unit—do not separate. For more information, click here.Closed When the V281A adapter is mounted on the V8486A power sensor, it is necessary to make sure the 1.85 mm connector on the adapter is on the opposite side from the type-N connector on the power sensor.  The power sensor/adapter combination must be connected prior to calibrating the power sensor.  The combination must be left connected for the duration of the calibration period. Check Option H67 when configuring the station and import the correct calibration data associated with Option H67. Also refer to Service Note E8361A-01.
  2. Option H67 is an ANSI Z540-1 calibration for the V8486A power sensor with a V281A connector adapter (connected together).
  3. May use loads with adapter from 85058B cal kit as an alternative.

Connection Setups

Due to the complexity of the PNA family of analyzers, the following notes apply to illustrations in the PNA Help:

  • Only a single representative PNA model will be shown. Therefore, port locations may differ in older PNA models than what is shown in the illustration. Refer to the port labels on the UUT.
  • Some illustrations may differ than those in TME.
  • If the test procedure applies to multiple ports, illustrations may show the setup on only one test port.
  • Setups for some option configurations may not appear in the Help.

Setups are grouped by PNA model numbers. Click on the links below for the appropriate model being tested.

For N5230A/C options 42x or 52x, N5234A/AS/B, and N5235A/AS/B, .



Power sensor zero/cal

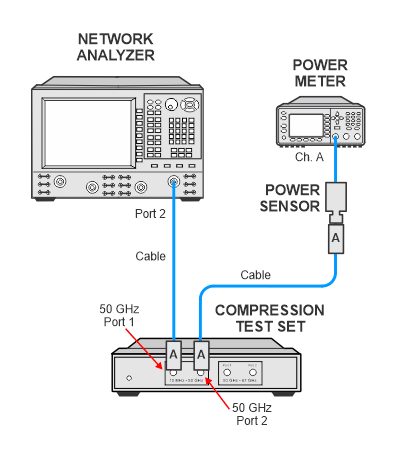

Step 1: PNA port 2 to test set input port 1, and test set output port 2 to power sensor

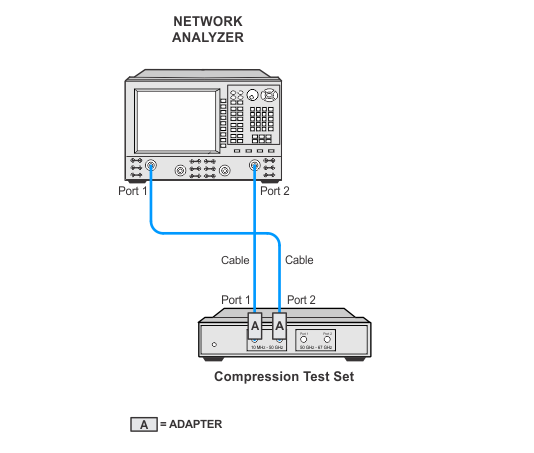

Step 2: PNA port 1 to test set output port 2, and PNA port 2 to test set input port 1

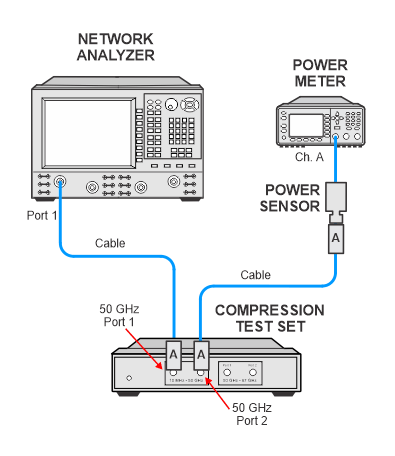

Step 3: PNA port 1 to test set input port 1, and test set output port 2 to power sensor

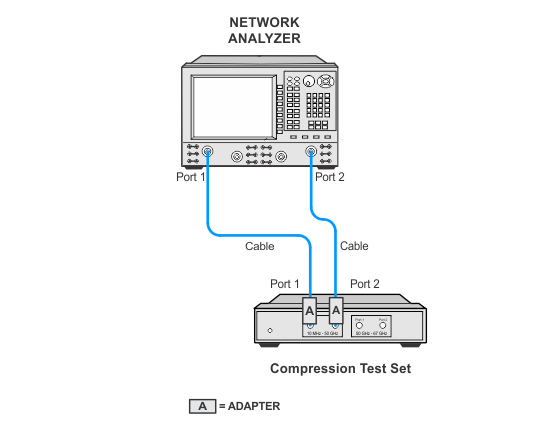

Step 4: PNA port 1 to test set input port 1, and PNA port 2 to test set output port 2

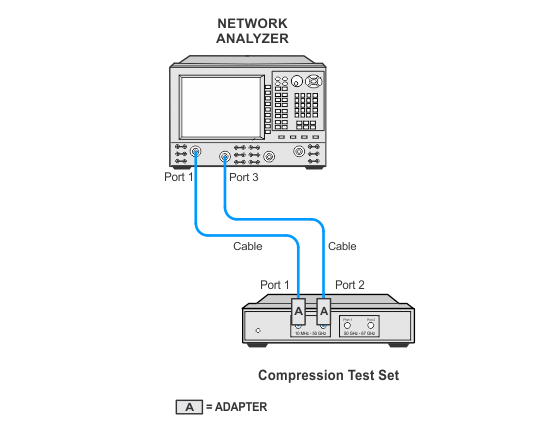

Step 5: PNA port 1 to test set input port 1, and PNA port 3 to test set output port 2

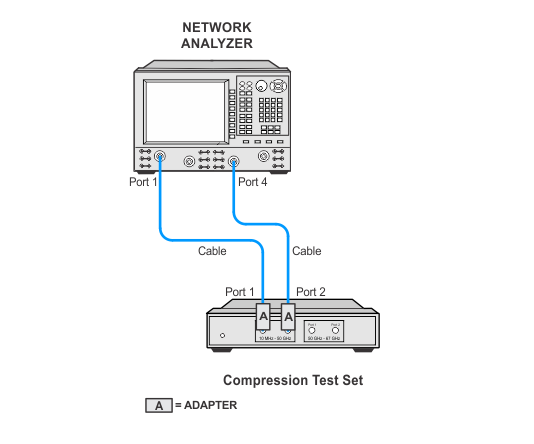

Step 6: PNA port 1 to test set input port 1, and PNA port 4 to test set output port 2

Step 7: Load on port 1 and Load on port 2

Step 8: Load on port 3 and Load on port 4



For all other PNA models, .



Power sensor zero/cal

Step 1: PNA port 2 to power sensor

Step 2: Port 2 to port 1

Step 3: PNA port 1 to power sensor

Step 4: Port 1 to port 2

Step 5: Port 1 to port 3

Step 6: Port 1 to port 4

Step 7: Load on port 1 and Load on port 2

Step 8: Load on port 3 and Load on port 4
