Synthesizer Output Rel Power Adjustment

(M9391A)

Relative power measurements use a receiver to measure the power at every step in the step attenuator relative to the step used during the Synthesizer Output Power Adjustment.

Required Test Equipment

Test Equipment

Recommended Models1

Spectrum analyzer

N9030A

Attenuator, 6 dB Fixed

8493C Opt. 006

Adapter, 3.5 mm (f) to 2.4 mm (f)

11901B

Cable, 3.5 mm (m) to 3.5 mm (m)

11500E

Frequency reference module

M9300A
  1. Refer to the main required equipment list for alternative models.

Connections and Setup Procedures

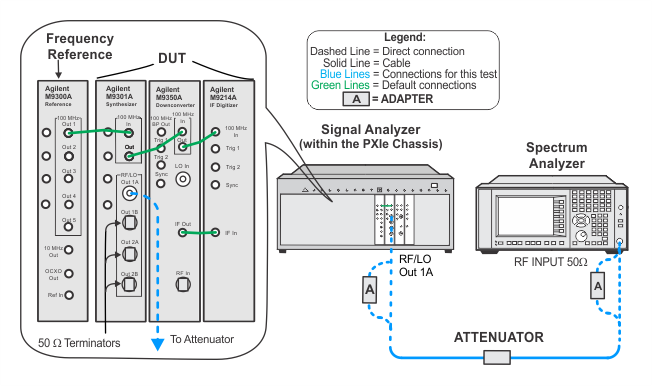

For procedures that apply to multiple ports, illustrations will show the setup on only one test port.
