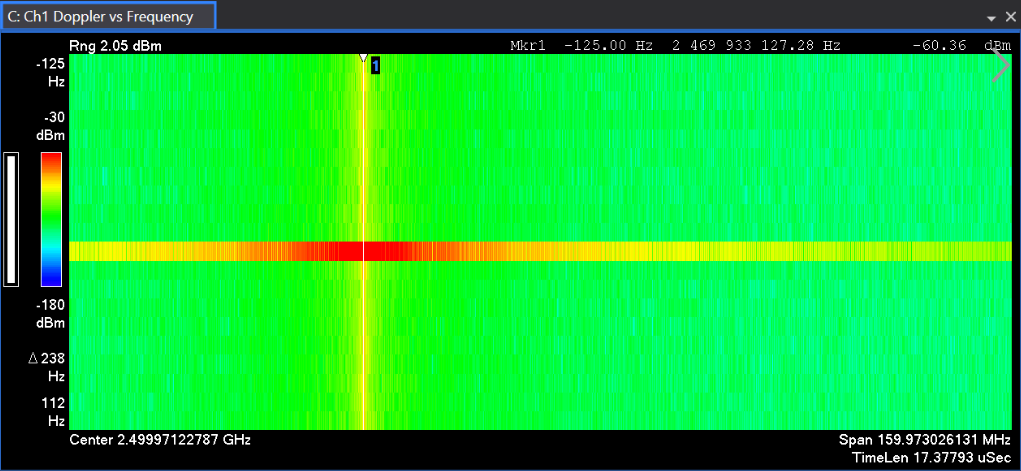

Doppler vs Frequency (Advanced-Radar/Hopping)
shows the relationship between center frequency and doppler frequency. It is created from the CIR vs Time Trace by doing a FFT Fast Fourier Transform: A mathematical operation performed on a time-domain signal to yield the individual spectral components that constitute the signal. See Spectrum. over both axes.
