Customize Layout of Windows

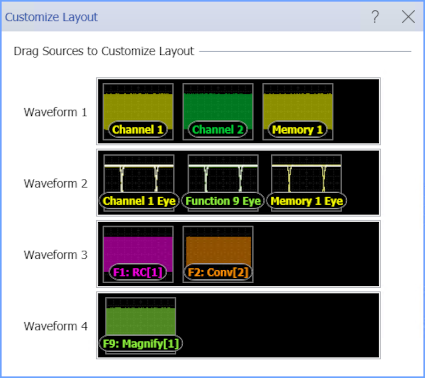

The Customize Layout dialog box lets you assign waveforms to particular windows. There are four waveform windows that can be used to hold time domain waveforms.

For example, you can drag the Channel 2 waveform to the Waveform 1, Waveform 2, Waveform 3, or Waveform 4 windows.

There are also four Freq-Mag, four Phase, and four GrpDelay widows that can be used to hold those types of frequency domain waveforms.

Within each waveform window, multiple waveform grids can be Stacked, Tiled, Overlapped, or Tab Tile using the controls in the upper-left corner of the window.

Customizing Layout using SCPI Commands

To move a waveform to a different content window of the same type, you can use the SCPI commands shown in the following table. If the additional content window does not exist, it will automatically be created. Refer to the Infiniium 2026 Programmers Guide for information on the Interactive SCPI Command Tree.

The following table describes the various content windows and their availability.

Waveform Window Types
Content Window Title	Waveform Types	Number of Available Windows		SCPI Command Used to Assign Waveform to Content Window	Description
Content Window Title	Waveform Types	GUI	Remote	SCPI Command Used to Assign Waveform to Content Window	Description
Waveform	Channels Differential Channels Most Functions Waveform Memory Eye/Mask Memory	4	4	:CHANnel<N>:CWINdow TIME<N> :DIFF<N>:CWINdow TIME<N> :FUNCtion<N>:CWINdow TIME<N> :WMEMory<N>:CWINdow TIME<N> :CHANnel<N>:EYE:CWINdow TIME<N> ...	This is the default window for most waveforms. Y-Axis: Volts or Watts (linear scale) X-Axis: seconds
Freq-Mag	Output of FFT math function	4	4	:FUNCtion<N>:CWINdow MAGNitude<N>	Y-Axis: dBV or dBm (logarithmic scale). X-Axis: seconds or Hertz. Use the `GRAPh` subsystem commands to autoscale, position, and scale waveforms.
GrpDelay	Output of FFT math function	4	4	:FUNCtion<N>:CWINdow GDELay<N>	Y-Axis: seconds X-Axis: Hertz. Use the `GRAPh` subsystem commands to autoscale, position, and scale waveforms.
Phase	Output of FFT math function	4	4	:FUNCtion<N>:CWINdow PHASe<N>	Y-Axis: phase (°) X-Axis: Hertz. Use the `GRAPh` subsystem commands to autoscale, position, and scale waveforms.
