Receiver Compression — Factory Recommended Variant

Equipment and Setups

  • This topic is also for the Receiver Compression at Low Frequency test.

  • Be sure that ClosedPause on test point fail is not selected for this test.

This topic shows the required equipment and connection setups for PNA models running the Factory Recommended Variant test plan. For more information about test plan variants, refer to the Test Plan Variants topic.

For test description, go to the topic's Overview page.

Required Test Equipment

Below is the required test equipment separated by the DUT connector type. Select the link that applies to the connector type for your PNA model.

for 3.5 mm connector models:

N5241A/AS/B/BC, N5242A/AS/B, N5242AH85, N5249A/AS/B
N5221A/AS/B, N5222A/AS/B
N5231A/AS/B, N5232A/AS/B, N5239A/AS/B
N5230A/C with option 12x, 14x, 22x, 24x, or 02x

3.5 mm Connector Models
Factory Recommended Variant

Test Equipment1

Recommended Model

Alternate Model

Power meter

N1914B

N1914A
E4419A/B
N1912A

PowerSensor 1

U8485A2 Option 200

U8485A2, 4
N8485A3, 4

Gain Compression Test Set5

U3070BK01

U3070AK01

20 dB fixed attenuator, 3.5 mm

For these models:

  • For N5222B with LFE options
  • N5231A/AS/B
  • N5232A/AS/B
  • N5239A/AS/B
  • N5230A/C Option 020, 025, 120, 125, 220, or 225

8493C Opt. 020


  1. Refer to the main Required Equipment table for a list of available adapters and cables.
  2. Requires power meter with USB ports.
  3. Not allowed with models with Low Frequency Extension (LFE) options.
  4. Not for PNA-L models N5231/32/39/A/AS/B or N5230A/C.
  5. If needed, the GPIB address on the test set can be modified by following these steps ().
    1. Connect the new test set to the LAN.
    2. Open Keysight IO from the PC.
    3. Select Add Instrument from the menu.
    4. In the Add LAN Instrument window, locate the new test set on the LAN.
    5. Select the web page for the new test set and select the View & Modify Configuration tab at the left.
    6. Select Modify Configuration.
    7. Change the GPIB address and select Save.

    The new test set should now have the updated GPIB address.



for 2.4 mm connector models:

N5244A/AS/B, N5245A/AS/B/BC
N5224A/AS/B, N5225A/AS/B
N5234A/AS/B, N5235A/AS/B
N5230A/C with option 42x or 52x

2.4 mm Connector Models
Factory Recommended Variant

Test Equipment1

Recommended Model

Alternate Model

Power meter

N1914B

N1914A
E4419A/B
N1912A

PowerSensor 1

U8488A2

U8487A2
N8488A3

PowerSensor 24

  • For DUTs with Option LFE

U8485A2 Option 200



Gain Compression Test Set5

  • For N5244A/AS/B, N5245A/AS/B/BC, N5234/35/A/AS/B, and for N5224/25/A/AS/B with option other than 200 or 400

U3070BK01

U3070AK01

20 dB fixed attenuator, 2.4 mm

  • For N5224/25A/AS/B with option 200 or 400

8490D Opt. 020


  1. Refer to the main Required Equipment table for a list of available adapters and cables.
  2. Requires power meter with USB ports.
  3. Not allowed with models with Low Frequency Extension (LFE) options.
  4. LFE options require this additional power sensor.
  5. If needed, the GPIB address on the test set can be modified by following these steps ().
    1. Connect the new test set to the LAN.
    2. Open Keysight IO from the PC.
    3. Select Add Instrument from the menu.
    4. In the Add LAN Instrument window, locate the new test set on the LAN.
    5. Select the web page for the new test set and select the View & Modify Configuration tab at the left.
    6. Select Modify Configuration.
    7. Change the GPIB address and select Save.

    The new test set should now have the updated GPIB address.



for 1.85 mm connector models:

N5247B/BC, N5227B

1.85 mm Connector Models
Factory Recommended Variant

Test Equipment1

Recommended Model

Alternate Model

Power meter

N1914B

N1914A
E4419A/B
N1912A

PowerSensor 1

U8488A2

N8488A3

PowerSensor 24

  • For DUTs with Option LFE

U8485A2 Option 200



Gain Compression Test Set

  • For N5247A/AS/B/BC all options, and for N5227A/AS/B with option other than 200 or 400

U3070BK015

U3070AK015

20 dB fixed attenuator, 1.85 mm

  • For N5227A/AS/B with option 200 or 400

8490G Opt. 020

Anritsu 41V-20
  1. Refer to the main Required Equipment table for a list of available adapters and cables.
  2. Requires power meter with USB ports.
  3. Not allowed with models with Low Frequency Extension (LFE) options.
  4. LFE options require this additional power sensor.
  5. If needed, the GPIB address on the test set can be modified by following these steps ().
    1. Connect the new test set to the LAN.
    2. Open Keysight IO from the PC.
    3. Select Add Instrument from the menu.
    4. In the Add LAN Instrument window, locate the new test set on the LAN.
    5. Select the web page for the new test set and select the View & Modify Configuration tab at the left.
    6. Select Modify Configuration.
    7. Change the GPIB address and select Save.

    The new test set should now have the updated GPIB address.

Connection Setups

Due to the complexity of the PNA family of analyzers, the following notes apply to illustrations in the PNA Help:

  • Only a single representative PNA model will be shown. Therefore, port locations may differ in older PNA models than what is shown in the illustration. Refer to the port labels on the UUT.
  • Some illustrations may differ than those in TME.
  • If the test procedure applies to multiple ports, illustrations may show the setup on only one test port.
  • Setups for some option configurations may not appear in the Help.



Flexible power sensor channel assignment

PNA models running the Factory Recommend Variant will use flexible power sensor channel assignment that will identify the channel that a power sensor is connected to using the ability of "smart" sensors such as the N848xA and U848xA series to report their full model and serial number. Therefore it is important to keep the power sensor on the channel where it was calibrated throughout the test procedures.

For more information about test plan variants, refer to the Test Plan Variants topic.

Power Sensor Calibration Setup

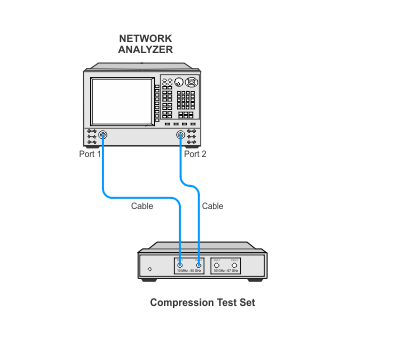

For solution using a compression test set, :



The Receiver Compression Above 50 GHz test will also test on the 50 GHz – 67 GHz ports of the test set.

  1. calibrate source

  2. measure compression

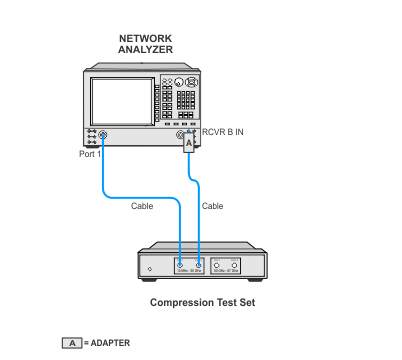

Notes for test process on the:

N5242A/AS/B, N5244A/AS/B, N5245A/AS/B/BC, N5247A/AS/B/BC
N5224A/AS/B, N5225A/AS/B, N5227A/AS/B with Option x01, x17, or x019

  • This test process is modified to measure the compression at the A IN or B IN direct receiver access points.

  • There are two additional test steps to measure the coupling factor for the appropriate coupler.



  1. measure the coupler loss 1

  2. measure the coupler loss 2

  3. calibrate source



  4. measure compression



For Receiver Compression at Low Frequency, :

  1. calibrate source

  2. measure compression 1

  3. measure compression 2
