Licensed Features

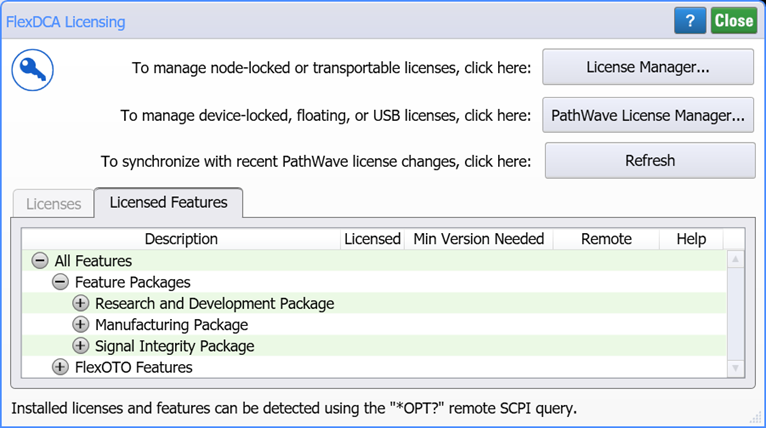

The Licensed Features tab in the Licensing dialog shows Flex-series application features added by software package licenses listed in the dialog's Licenses tab. These features are not available on their own as a single license.
FlexOTO Package Licensed Features
This table shows all the available features for all license packages.
| Feature | OPT?1 | FlexDCA Package Licenses | FlexOTO Licenses | |||||
|---|---|---|---|---|---|---|---|---|
| N1010100A (L-RND1) |
N1010200A (L-MFG1) |
N1010300A (L-SNT1) |
N1002000A (L-OTO1) |
N1002014A (L-OTO171) |
N1002048A (L-OTO481) |
N1002128A (L-OTO1281) |
||
| none available | — | ■ | ■ | |||||
| Fast Acquisition for DUT Tuning | F-FTUNE | ■ | ■ | ■ | ■ | |||
| Low SNR TDECQ | F-LSNR | ■ | ■ | ■ | ■ | ■ | ||
| FlexOTO (Optical Test Optimizer) | F-OTO | ■ | ■ | ■ | ■ | ■ | ||
| FlexOTO 17 Port Switch Support | F-SW17 | ■ | ||||||
| FlexOTO 48 Port Switch Support | F-SW48 | ■ | ||||||
| FlexOTO 128 Port Switch Support | F-SW128 | ■ | ||||||
Characters that identify a feature in the string returned by the *OPT? common programming query.
