Noise Floor — Factory Recommended Variant

Equipment & Setups

  • Before starting this test, verify that the Report Receiver Overload box is un-checked (off). To check the status of this setting, from the PNA menu, go to Utility > System > System Setup > Preferences...

    Scroll down to the bottom of the selections. Be sure the box is un-checked (off).

  • Be sure that ClosedPause on test point fail is not selected for this test.

This topic shows the required equipment and connection setups for PNA models running the Factory Recommended Variant test plan. For more information about test plan variants, refer to the Test Plan Variants topic.

For test description, go to the topic's Overview page.

Required Test Equipment

Below is the required test equipment separated by the DUT connector type. Select the link that applies to the connector type for your PNA model.

for 3.5 mm connector models:

N5241A/AS/B/BC, N5242A/AS/B, N5242AH85, N5249A/AS/B
N5221A/AS/B, N5222A/AS/B
N5231A/AS/B, N5232A/AS/B, N5239A/AS/B
N5230A/C with option 12x, 14x, 22x, 24x, or 02x

3.5 mm Connector Models
Factory Recommended Variant

Test Equipment1

Recommended Model

Alternate Model

Power meter

N1914B

N1914A
E4419A/B
N1912A

PowerSensor 1

U8485A2 Option 200

U8485A2, 4
N8485A3, 4

Calibration kit, 3.5 mm
(CalKitTwoPort1)

Only the loads are used

85052B


  1. Refer to the main Required Equipment table for a list of available adapters and cables.
  2. Requires power meter with USB ports.
  3. Not allowed with models with Low Frequency Extension (LFE) options.
  4. Not for PNA-L models N5231/32/39/A/AS/B or N5230A/C.



for 2.4 mm connector models:

N5244A/AS/B, N5245A/AS/B/BC
N5224A/AS/B, N5225A/AS/B
N5234A/AS/B, N5235A/AS/B
N5230A/C with option 42x or 52x

2.4 mm Connector Models
Factory Recommended Variant

Test Equipment1

Recommended Model

Alternate Model

Power meter

N1914B

N1914A
E4419A/B
N1912A

PowerSensor 1

U8488A2

U8487A2
N8488A3

PowerSensor 24

  • For DUTs with Option LFE

U8485A2 Option 200



Gain Compression Test Set5

  • Only used with N5234A/AS/B, N5235A/AS/B, and N5230A/C option 42x or 52x

U3070BK01

U3070AK01

Calibration kit, 2.4 mm
(CalKitTwoPort1)

Only the loads are used

85056A


  1. Refer to the main Required Equipment table for a list of available adapters and cables.
  2. Requires power meter with USB ports.
  3. Not allowed with models with Low Frequency Extension (LFE) options.
  4. LFE options require this additional power sensor.
  5. If needed, the GPIB address on the test set can be modified by following these steps ().
    1. Connect the new test set to the LAN.
    2. Open Keysight IO from the PC.
    3. Select Add Instrument from the menu.
    4. In the Add LAN Instrument window, locate the new test set on the LAN.
    5. Select the web page for the new test set and select the View & Modify Configuration tab at the left.
    6. Select Modify Configuration.

    7. Change the GPIB address and select Save.

    The new test set should now have the updated GPIB address.



for 1.85 mm connector models:

N5247A/AS/B/BC, N5227A/AS/B

1.85 mm Connector Models
Factory Recommended Variant

Test Equipment1

Recommended Model

Alternate Model

Power meter

N1914B

N1914A
E4419A/B
N1912A

PowerSensor 1

U8488A2

N8488A3

PowerSensor 24

  • For DUTs with LFE options

U8485A2 Option 200



Calibration kit, 1.85 mm
(CalKitTwoPort1)

Only the loads are used

85058B


  1. Refer to the main Required Equipment table for a list of available adapters and cables.
  2. Requires power meter with USB ports.
  3. Not allowed with models with Low Frequency Extension (LFE) options.
  4. LFE options require this additional power sensor.



for 1 mm connector models:

N5290A, N5291A

1 mm Connector Models
Factory Recommended Variant

Test Equipment1

Recommended Model

Alternate Model

Power meter

N1914B

N1914A

PowerSensor 1

U8489A2 Option 200



Calibration kit, 1 mm
(CalkitTwoPort2)

Only the loads are used

85059B


  1. Refer to the main Required Equipment table for a list of available adapters and cables.
  2. Requires power meter with USB ports.

Connection Setups

Due to the complexity of the PNA family of analyzers, the following notes apply to illustrations in the PNA Help:

  • Only a single representative PNA model will be shown. Therefore, port locations may differ in older PNA models than what is shown in the illustration. Refer to the port labels on the UUT.
  • Some illustrations may differ than those in TME.
  • If the test procedure applies to multiple ports, illustrations may show the setup on only one test port.
  • Setups for some option configurations may not appear in the Help.

Setups are grouped by PNA model numbers. Click on the links below for the appropriate model being tested.

For PNA mmWave Systems N5290A and N5291A, .



Flexible power sensor channel assignment

PNA models running the Factory Recommend Variant will use flexible power sensor channel assignment that will identify the channel that a power sensor is connected to using the ability of "smart" sensors such as the N848xA and U848xA series to report their full model and serial number. Therefore it is important to keep the power sensor on the channel where it was calibrated throughout the test procedures.

For more information about test plan variants, refer to the Test Plan Variants topic.

For default front and rear cabling between the PNA and the test set, refer to Step 2: Prepare the PNA for Testing of the Getting Started Guide.

Power sensor zero/cal

Step 1: Power sensor to Frequency Extender 2

Step 2: Frequency Extender 2 to Frequency Extender 1

Step 3: Power sensor to Frequency Extender 1

Step 4: Frequency Extender 1 to Frequency Extender 2

Step 5: Frequency Extender 1 to Frequency Extender 3

Step 6: Frequency Extender 1 to Frequency Extender 4

Step 7: Load on Frequency Extender 1 and Load on Frequency Extender 2

Step 8: Load on Frequency Extender 3 and Load on Frequency Extender 4



For N5230A/C options 42x or 52x, N5234A/AS/B, and N5235A/AS/B, .



Flexible power sensor channel assignment

PNA models running the Factory Recommend Variant will use flexible power sensor channel assignment that will identify the channel that a power sensor is connected to using the ability of "smart" sensors such as the N848xA and U848xA series to report their full model and serial number. Therefore it is important to keep the power sensor on the channel where it was calibrated throughout the test procedures.

For more information about test plan variants, refer to the Test Plan Variants topic.

Power sensor zero/cal

Step 1: PNA port 2 to test set input port 1, and test set output port 2 to power sensor

Step 2: PNA port 1 to test set output port 2, and PNA port 2 to test set input port 1

Step 3: PNA port 1 to test set input port 1, and test set output port 2 to power sensor

Step 4: PNA port 1 to test set input port 1, and PNA port 2 to test set output port 2

Step 5: PNA port 1 to test set input port 1, and PNA port 3 to test set output port 2

Step 6: PNA port 1 to test set input port 1, and PNA port 4 to test set output port 2

Step 7: Load on port 1 and Load on port 2

Step 8: Load on port 3 and Load on port 4



For all other PNA models, .



Flexible power sensor channel assignment

PNA models running the Factory Recommend Variant will use flexible power sensor channel assignment that will identify the channel that a power sensor is connected to using the ability of "smart" sensors such as the N848xA and U848xA series to report their full model and serial number. Therefore it is important to keep the power sensor on the channel where it was calibrated throughout the test procedures.

For more information about test plan variants, refer to the Test Plan Variants topic.

Power sensor zero/cal

Step 1: PNA port 2 to power sensor

Step 2: Port 2 to port 1

Step 3: PNA port 1 to power sensor

Step 4: Port 1 to port 2

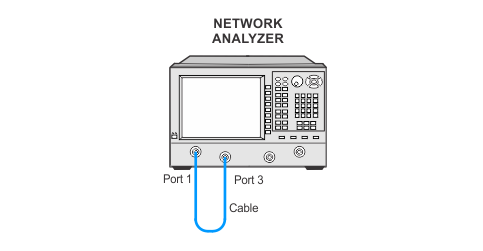

Step 5: Port 1 to port 3

Step 6: Port 1 to port 4

Step 7: Load on port 1 and Load on port 2

Step 8: Load on port 3 and Load on port 4
