Thresholds

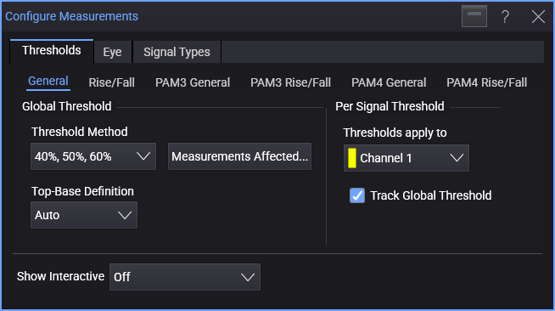

Click Measure > Thresholds... to open the Thresholds tab of the Configure Measurements dialog box.

Within the Thresholds tab of the Configure Measurements dialog box, there are these subtabs:

• General — for everything except rise/fall time measurements. See General Thresholds.
• Rise/Fall — for rise and fall time measurements. See Rise/Fall Thresholds.
• PAM3 General — for everything except rise/fall time measurements. See PAM3 General Thresholds.
• PAM3 Rise/Fall — for rise and fall time measurements. See PAM3 Rise/Fall Thresholds.
• PAM4 General — for everything except rise/fall time measurements. See PAM4 General Thresholds.
• PAM4 Rise/Fall — for rise and fall time measurements. See PAM4 Rise/Fall Thresholds.
