Quick Start

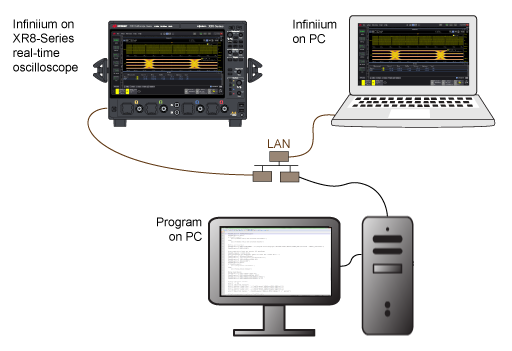

This topic shows the configurations that can be used for controlling Infiniium 2026.

From a remote computer, you can control Infiniium 2026 running on an oscilloscope or running offline on a PC. Because the oscilloscope is also a PC, you can also run programs on the oscilloscope or on the PC running Infiniium 2026 offline.

For example scripts for different configurations, see:

• Basic Script
• Simulated Instrument Install

To determine Infiniium 2026's current configuration

The following table lists the queries that you can send to learn about the current configuration of Infiniium 2026.

Query Responses Indicating Infiniium 2026 Configuration

Query	Configurations		Description
	Offline	Oscilloscope
*IDN?	D9300A	XR804KA	These responses are substrings of the returned identification string. For example, Keysight Technologies,D9300A,2UA5383S5F,A.26.60.000
:INSTrument:CONNection1:SELection?	VFCHannel	XR8	Indicates that a virtual 4-channel oscilloscope or real oscilloscope hardware is assigned to connection 1.
:INSTrument:CONNection1:STATe?	CONN	CONN	Indicates a communication connection has been established with a virtual instrument or oscilloscope hardware.
