:MEASure:EYE:PAM:LEVel:LEVel

Meas. mode:
Eye
Package License:
L-RND
L-MFG
Waveform type:
NRZ
PAM4
Flex Apps:
FlexDCA
FlexRT
Eye Levels Commands

Command Syntax

:MEASure:EYE:PAM:LEVel:LEVel {LEVel0 | LEVel1 | LEVel2 | LEVel3}

Query Syntax

:MEASure:EYE:PAM:LEVel:LEVel?

Description

Selects the eye diagram's level on which to perform the :LEVel measurement. The LEVel2 and LEVel3 arguments apply only to PAM4 signals. If you experience difficulties measuring a PAM4 signal, confirm that the signal-type setting is set to PAM4 with the :CHANnel:SIGNal:TYPE command.

NRZ Waveform
PAM4 Waveform

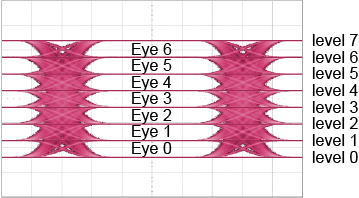

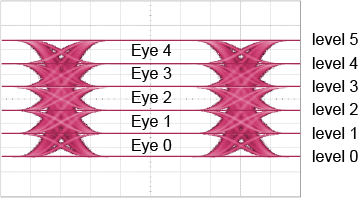

Requires FlexDCA revision A.04.50 and above.
