:DISK:DWIZard:POJitter:SDATa

Command Syntax

:DISK:DWIZard:POJitter:SDATa {ON | OFF | 1 | 0}

Query Syntax

:DISK:DWIZard:POJitter:SDATa?

Query Response

 {ON | OFF | 1 | 0}

Description

When saving a Documentation Wizard zip file (:DISK:DWIZard:SAVE), use this command to add the results for Jitter mode's Phase-Only Jitter measurements for PAM4 waveforms. These measurements are activated by the :MEASure:JITTer:POJitter:STATe command. The command arguments are:

ON

Includes files in Documentation Wizard zip file.

OFF

Excludes files in Documentation Wizard zip file.

The following two files are added to the Documentation Wizard zip file:

• An ASCII CSV file of the Timing Jitter panel measurement results including table labels (Timing Jitter Window Results.csv).

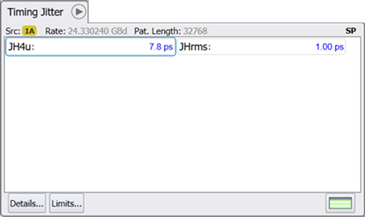

• A screen capture of the Timing Jitter panel measurement results (Timing Jitter Window Screen Capture.png), as shown in the following figure.

Example

:MEASure:JITTer:STATe ON
:MEASure:JITTer:POJitter:STATe ON
:DISK:DWIZard:FNAMe "%USER_DATA_DIR%\Documentation Results\DocResults_POJ.zip"
:DISK:DWIZard:POJitter:SDATa ON
:DISK:DWIZard:SSCReen OFF
:DISK:DWIZard:SSETup OFF
:DISK:DWIZard:JGRaphs:SDATa OFF
:DISK:DWIZard:TIME1:SDATa OFF
:DISK:DWIZard:SSINfo OFF
:DISK:DWIZard:SAVe;*OPC?
